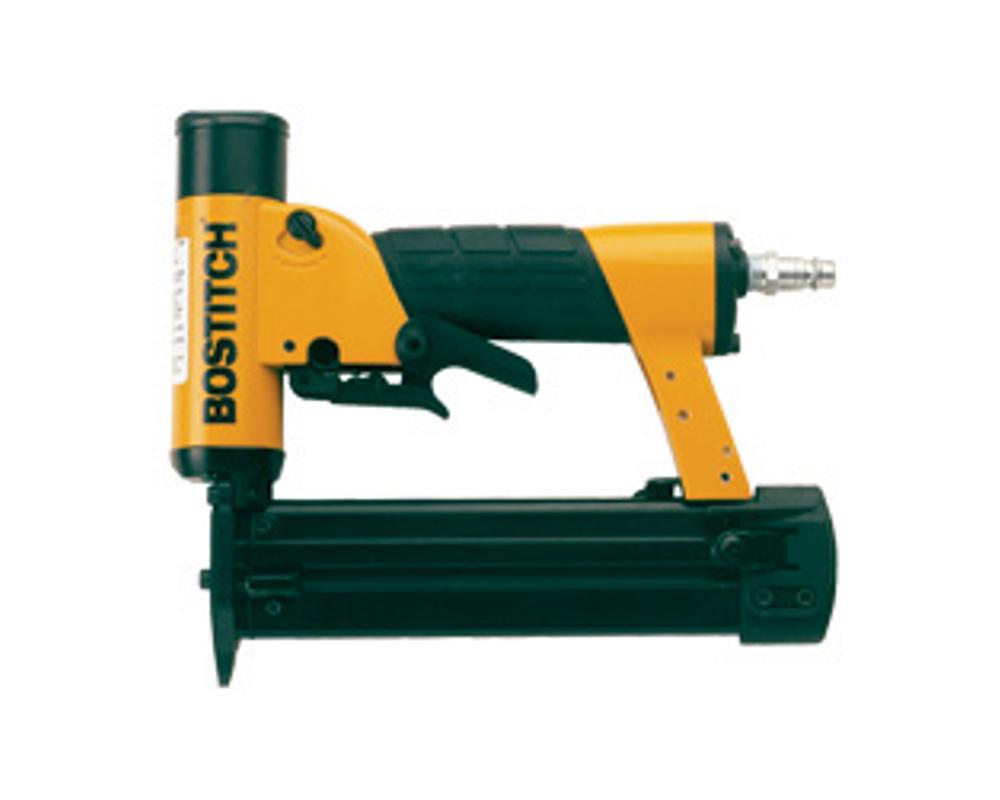

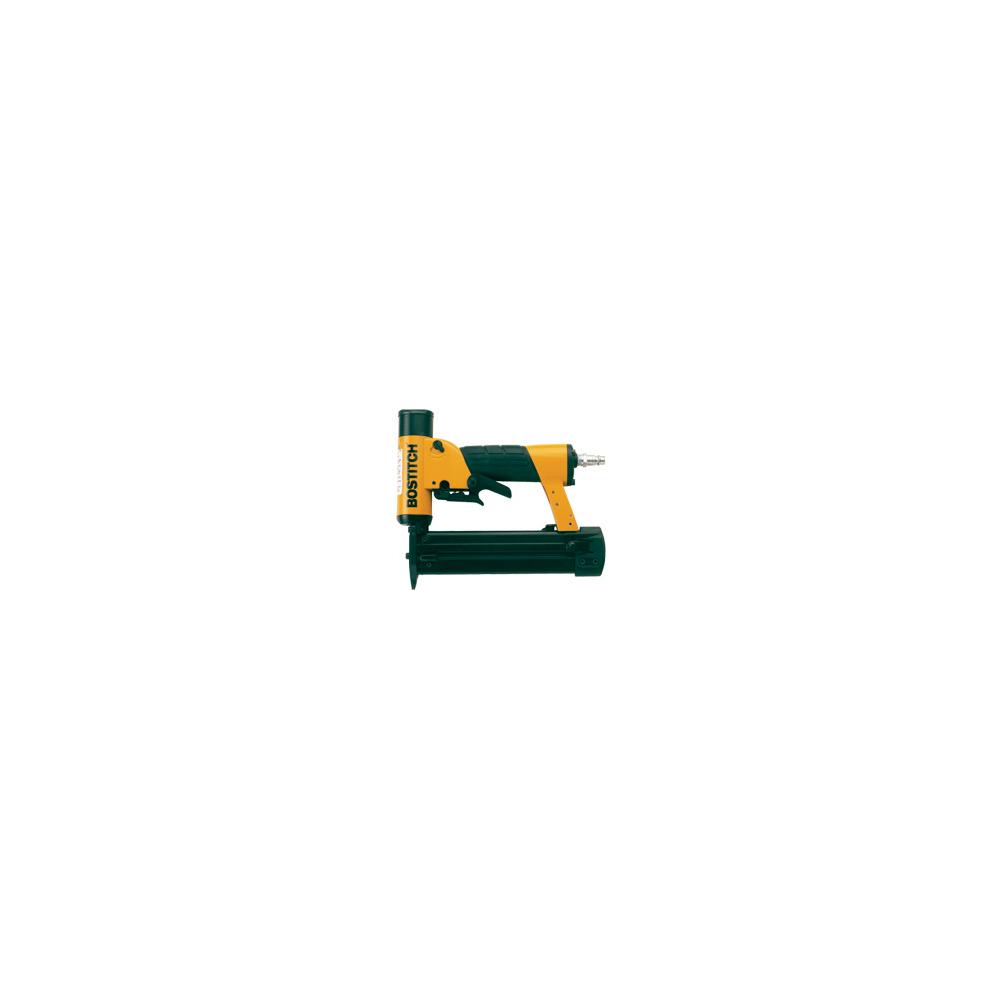

Bostitch 106 Tűszegező 15-30mm (TU-216-2330K-E)
Leírás és Paraméterek
23G HEADLESS PINNER 30MM MAX
TU-216-2330K-E
TU-216-2330K-E
Típusok és méretek:
- Diameter: 0.6 - 0.6mm
- Length: 15 - 30mm
Leírás:
- Lightweight small gauge pinner built for construction and industrial use.
- The TU-216-2330K-E is perfect for fine mouldings (avoiding marking of the job); beading or even for tacking work in place while the glue dries.
- Features an auto adjusting magazine.
Tulajdonságok:
-
Aluminium Housing -
Rubber Comfort Grip -
Power Adjustment -
Secondary Trigger -
Rear Exhaust -
Compact Nose -
Side Loading -
Carry Case
Specifikációk:
| Power type | Pneumatic | |
|---|---|---|
| Weight | 0.98 kg | |
| Width | 40 mm | |
| Length | 230 mm | |
| Height | 198 mm | |
| Magazine capacity (max) | 200 | |
| 106 Series Fasteners: | ||
| Diameter (mm) | 0.6 (min) | 0.6 (max) |
| Length (mm) | 15 (min) | 30 (max) |
| Head (mm) | 0.6 (min) | 0.6 (max) |
Műszaki adatok:
| Operating pressure | 4.80 - 7.00 BAR | ||
|---|---|---|---|
| 70.00 - 100.00 PSI | |||
| Air Consumption Ltr.per shot @ 5.6 bar | 0.52 | ||
| Air fitting thread type | 1/4 BSP | ||
| Noise | LPA 1sd | 68.10 | |
| LWA 1sd | 81.10 | ||
| LPA 1s; 1m | 78.90 | ||
| Vibration / Uncertainty | < 2.5 / N/A m/s2 | ||
Series Fasteners
| SKU | Diameter | Length | Head | Finish | Collation type | Collation angle | Kiszerelés |
|---|---|---|---|---|---|---|---|
| 1061800Z | 0.6 (21) | 18 | 0.6 | Stanox | ° | 20000 | |
| 1062500Z | 0.6 (21) | 25 | 0.6 | Stanox | ° | 10000 | |
| 1063000Z | 0.6 (21) | 30 | 0.6 | Stanox | ° | 10000 | |
| 1061500Z | 0.6 (21) | 15 | 0.6 | Galv | ° | 20000 |
| Gép típus | Tűszegező |
